Drive shaft flange seal, replacing: Notes
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

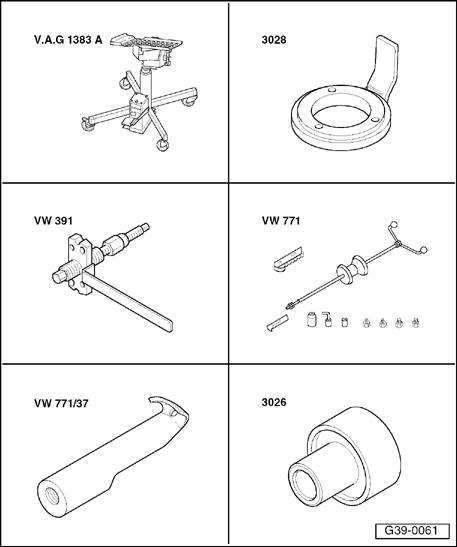

The following special tools and testing devices are required:
- V.A.G 1383A Engine/transmission jack with universal mounting V.A.G 1359/2
- 3028 - Retainer
- VW 391 -Puller
- VW 771 - Slide hammer-complete set
- VW 771/37 Additional part for VW 771
- 3026 - Mandrel
- Drive pinion 3143
- Rear final drive installed
- Observe general repair instructions. Refer to Repair instructions
