Valve body

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

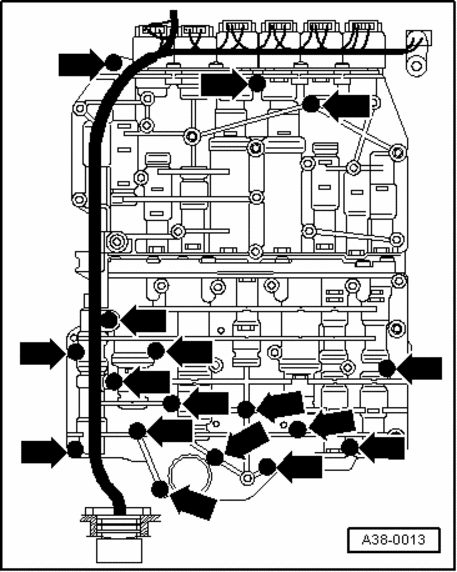

Fig 1: Locating Valve Body Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation location: Valve body is bolted on to transmission housing below and covered by transmission oil pan.

Solenoid valves N88 , N89 , N90 , and pressure control valves N215 , N216 , N217 , N218 are fastened to valve body.

Removing and installing valve body

→ Valve body, removing and installing
