Pulling off inner race for tapered roller bearing (left-side)

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

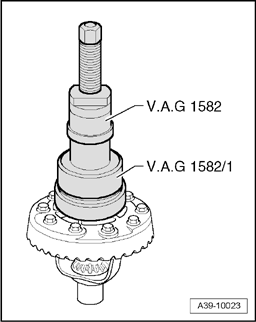

Fig 1: Pulling Off Inner Race For Tapered Roller Bearing (Left-Side)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Before setting up the puller, place thrust pad VW 447 H on differential cage.
