Transmission layout

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Identification

NOTE:

- Arrows - point in direction of travel.

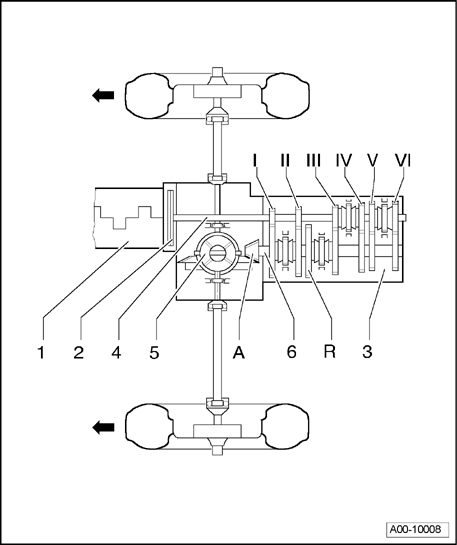

Fig 1: Transmission Layout

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Engine

2 - Clutch

3 - Manual transmission

Diagram of transmission layout → Transmission, overview

4 - Input shaft (main shaft)

5 - Differential

6 - Pinion shaft (output shaft)

Fig 2: Transmission Layout

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - 1st gear

II - 2nd gear

III - 3rd gear

IV - 4th gear

V - 5th gear

VI - 6th gear

R - Reverse gear

A - Final drive
