Transmission layout

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

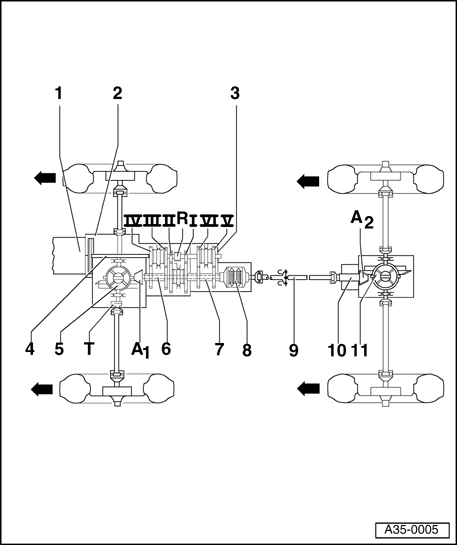

Fig 1: Transmission, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Engine

2 - Clutch

3 - Manual transmission

4 - Input shaft (main shaft)

5 - Front differential

6 - Front drive pinion (output shaft)

7 - Hollow shaft

8 - Torsen differential

9 - Driveshaft

10 - Rear drive pinion

11 - Rear differential

NOTE: Arrows face in direction of travel.

Fig 2: Transmission, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - 1st gear

II - 2nd gear

III - 3rd gear

IV - 4th gear

V - 5th gear

VI - 6th gear

R - Reverse gear

A1 - Front final drive

A2 - Rear final drive

T - Speedometer drive, electronic

NOTE: Arrows face in direction of travel.
