After-Run Coolant Pump -V51-: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Coolant Reservoir Marking

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Reduce pressure by covering coolant reservoir cap with a cloth and carefully opening.

-- Open the coolant reservoir cap.

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Fig 2: Identifying Front Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- and remove the bolt -1-.

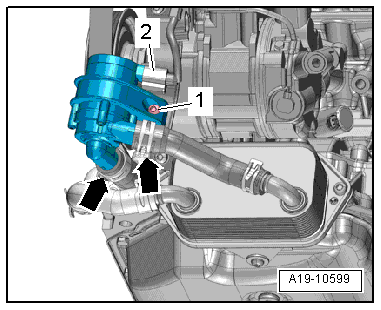

Fig 3: Identifying coolant hose clamps -arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Place the VAS 6208 under the engine.

-- Open the clamps -arrows- and remove the after-run coolant pump from the coolant hoses.
