Radiator And Coolant Fan Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of personal injury due to the coolant fan turning on by itself.
- Disconnect the connectors before working near the fan shroud.

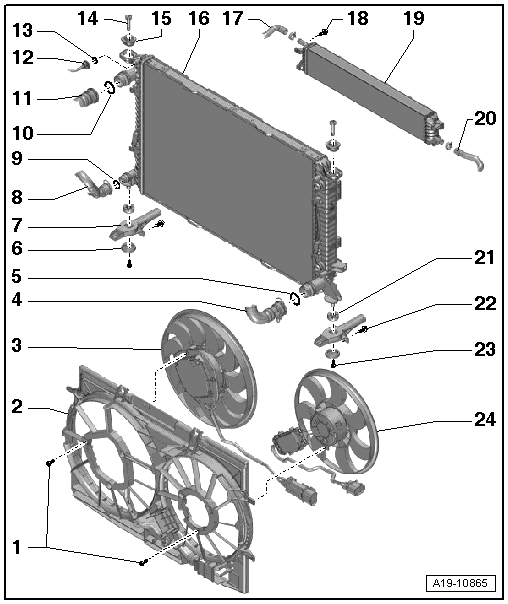

Radiator, Front Charge Air Cooling Circuit Radiator, Fan Shroud and Radiator Fan - Version 1
- Bolt
- 4.5 Nm
- Fan Shroud
- Removing and installing together with the radiator, refer to RADIATOR AND FAN SHROUD
- A5, refer to FAN SHROUD
- Coolant Fan -V7-
- With coolant fan control module -J293-
- Removing and installing, refer to COOLANT FAN -V7- AND COOLANT FAN 2 -V177-, VERSION 1
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 4
- O-ring
- Replace
- Rubber Buffer
- Radiator Bracket
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 4
- O-ring
- Replace
- O-ring
- Replace
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 4
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 4
- O-ring
- Replace
- Retaining Pin
- Disengage and remove using screwdriver
- Rubber Bushing
- For radiator
- Radiator
- Removing and installing with the fan shroud, refer to RADIATOR AND FAN SHROUD
- Change coolant after replacing
- Coolant Hose
- Bolt
- 4.5 Nm
- Front Charge Air Cooling Circuit Radiator
- Removing and installing, refer to FRONT CHARGE AIR COOLING CIRCUIT RADIATOR
- Coolant Hose
- Rubber Bushing
- For radiator
- Bolt
- 5 Nm
- Bolt
- 4.5 Nm
- Radiator Fan 2 -V177-
- Removing and installing, refer to COOLANT FAN -V7- AND COOLANT FAN 2 -V177-, VERSION 1
Fan Shroud and Radiator Fan - Version 2
- Coolant Fan -V7-
- With coolant fan control module -J293-
- Removing and installing, refer to COOLANT FAN -V7- AND COOLANT FAN 2 -V177-, VERSION 1
- Radiator Fan 2 -V177-
- With coolant fan control module 2 -J671-
- Removing and installing, refer to COOLANT FAN -V7- AND COOLANT FAN 2 -V177-, VERSION 1
- Fan Shroud
- Removing and installing, refer to FAN SHROUD
- Bolt
- 3.5 Nm
- Fan Wheel
- The bolt must lock into the hole.
- Bolt
- 5 Nm
- Fan Wheel
- The bolt must lock into the hole.
- Bolt
- 5 Nm
- Bolt
- 3.5 Nm
Left Charge Air Cooling Circuit Radiator
- Air Guide
- Left Charge Air Cooling Circuit Radiator
- Removing and installing, refer to LEFT CHARGE AIR COOLING CIRCUIT RADIATOR
- Coolant Hoses
- Nut
- 9 Nm
- Bracket
- Nut
- 9 Nm
- Rubber Bushing
- For radiator
- Nut
- 9 Nm
- Coolant Hose
- Bracket
- Bracket
- Charge Air Coolant Pump -V188-
- Removing and installing, refer to CHARGE AIR COOLING PUMP -V188-
- Coolant Hose
- Rubber Bushing
- For radiator
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
