Secondary Air Injection Pump Motor -V101-: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When installing, bring all cable ties back to same positions.

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION .

Vehicles with Secondary Air Injection (AIR) Pump Motor -V101-, Version 1

Fig 2: Component Location Of Secondary Air Injection (AIR) Pump Motor -V101-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3- on the AIR pump motor.

-- Press the release buttons and remove the secondary air hoses -1 and 2-.

NOTE:

The installation location is shown with the wheel housing lining removed.

Vehicles with Secondary Air Injection (AIR) Pump Motor -V101-, Version 2

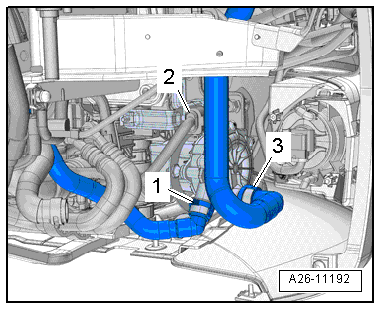

Fig 3: Identifying Secondary Air Injection (AIR) Pump Motor Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- on the AIR pump motor.

-- Press the release buttons and remove the secondary air hoses -1- and -3-.

All Vehicles

Fig 4: Identifying Bolts And Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper cover end plate. Refer to "Front Bumper" in FRONT BUMPER .

-- Remove the left and right air intake grille -1-. Refer to "Front Bumper" in FRONT BUMPER .

Fig 5: Releasing Clamps Arrows And Remove Air Intake Grille

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the secondary air pump.

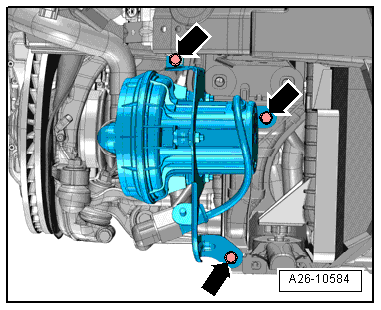

Fig 6: Identifying Bolts And Secondary Air Pump

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The installation location is shown with the bumper cover removed.
