Tightening Specification And Sequence, Center Differential Housing - Attached Driveshaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S5, 2014 Audi S5, 2013 Audi S5, 2012 Audi S5, and 2011 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

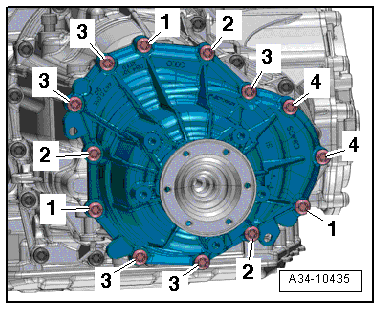

-- Tighten bolts in 8 stages as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | Aluminum bolts -1- | 8 Nm |
| 2. | Aluminum bolts -2- | Tighten the bolt hand-tight. |
| 3. | Aluminum bolts -1- | Loosen again and then install all the way hand-tight |
| 4. | Aluminum bolts -3- | Tighten the bolt hand-tight. |
| 5. | Steel bolts -4- | Tighten the bolt hand-tight. |
| 6. | -1, 2, 3, 4- | 10 Nm diagonally |
| 7. | Steel bolts -4- | 15 Nm |
| 8. | -1, 2, 3, 4- | 90° additional turn, diagonally |
