Valve Stem Seals, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Place plastic sleeve -A- on valve stem to prevent damage to new valve stem seals.

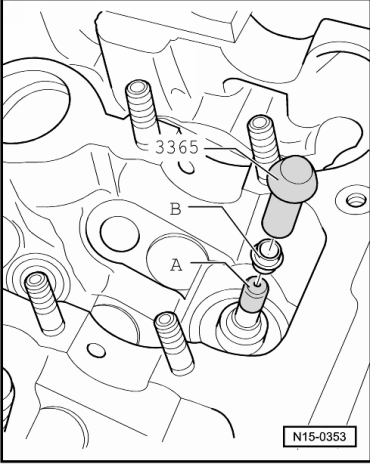

Fig 1: Identifying Plastic Sleeve, Valve Stem Seal And Valve Stem Seal Driver 3365

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Oil the sealing lip of valve stem seal -B-, insert into :3365 and carefully slide onto the valve guide.

-- Install the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
