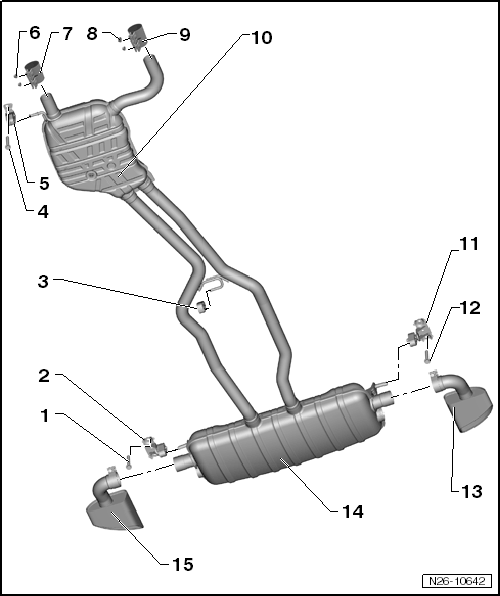

Overview - Muffler: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 23 Nm
- Mount
- Replace if damaged
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Mount
- Replace if damaged
- Nut
- 35 Nm
- Front Clamping Sleeves
- Replace
- Installed position. Refer to Figure
- Before tightening, align exhaust system so that it is tension-free. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION
- Tighten threaded connections evenly.
- Nut
- 35 Nm
- Front Clamping Sleeves
- Replace
- Installed position. Refer to Figure
- Before tightening, align exhaust system so that it is tension-free. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION
- Tighten threaded connections evenly.
- Center Muffler
- Original equipment as one unit with the rear muffler. If a repair is required replace each separately
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Left Tail Pipe
- Tightening specification: 60 Nm
- Aligning. Refer to TAIL PIPES, REPLACING .
- Rear Muffler
- Original equipment as one unit with center muffler
- If a repair is required, the center muffler, rear muffler and tail pipes can be replaced separately
- Center muffler/rear muffler separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Right Tail Pipe
- Tightening specification: 60 Nm
- Aligning. Refer to TAIL PIPES, REPLACING .
