Exhaust Manifold, Removing And Installing, Right (Bank 1): Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

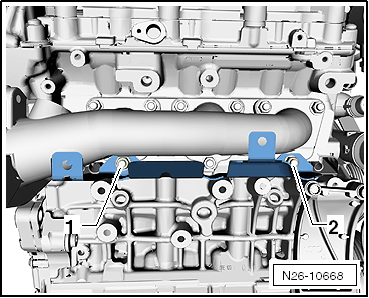

Fig 1: Identifying Nuts -1 To 2- And Heat Shield Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the exhaust manifold with the seal, coat the nut threads with hot bolt paste and position them.

-- Mount the bracket for the heat shield with the nuts -1 and 2-.

-- Tighten nuts in 3 stages in -1 to 9- sequence as follows:

Fig 2: Exhaust Manifold Bolts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the nuts hand-tight.

-- Pre-tighten to 15 Nm.

-- Tighten to 25 Nm.

Install in reverse order of removal, note the following:

Tightening specifications. Refer to OVERVIEW - EXHAUST MANIFOLD .
