Catalytic Converter, Removing And Installing, Right (Bank 1): Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Socket and Jointed Extension - 12mm:T40220

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the Oxygen Sensor after Three Way Catalytic Converter -G130-. Refer to Oxygen Sensor after Three Way Catalytic Converter -G130-, REMOVING AND INSTALLING .

-- Remove the nut -2- accessible from above using the Socket and Jointed Extension - 12mm:T40220 .

Fig 1: Identifying Catalytic Converter And Front Muffler To Exhaust Manifold, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To provide a better illustration, component location is shown from behind with engine removed.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the right front muffler -B-.

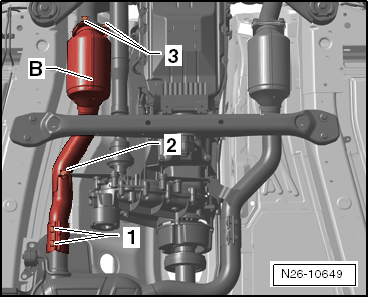

Fig 2: Identifying Right Front Muffler -B-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front driveshaft. Refer to DRIVESHAFT [For transmission(s) 0C8] .

-- Remove the catalytic converter support.

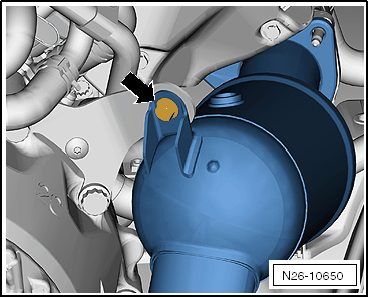

Fig 3: Identifying Catalytic Converter Support Bolt -Arrow-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove nuts -1 and 3- (accessible from the bottom) from front exhaust pipe to exhaust manifold connection.

-- Remove the catalytic converter.

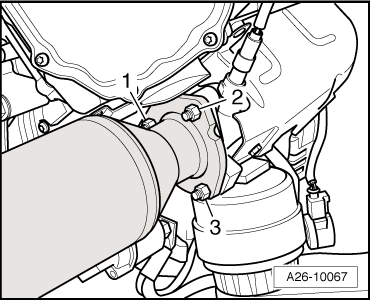

Fig 4: Identifying Catalytic Converter And Front Muffler To Exhaust Manifold, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
