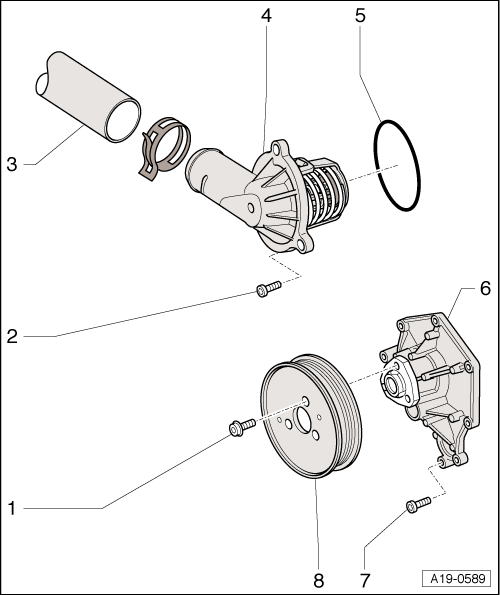

Overview - Thermostat And Coolant Pump, Engine Codes Casa And CASD
WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coolant Hose Connection Diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .
- Bolt
- 23 Nm
- Bolt
- 9 Nm
- Coolant Hose
- From the radiator at the bottom and on the right side
- Coolant Thermostat with Connection
- Removing and installing. Refer to THERMOSTAT WITH CONNECTIONS, REMOVING AND INSTALLING, ENGINE CODES CASA, CASD .
- Seal
- Replace
- Coolant Pump
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Coolant Pump Ribbed Belt Pulley
- Installation location: writing "front" indicates direction of travel
- Counterhold with the Wrench - Pin Type:3212 to remove and install.
