Fuel Level Sensor 2 -G169- AND SUCTION JET PUMPS, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

During installation, all cable ties must be installed at the same location.

-- Read the Safety Precautions before starting. Refer to SAFETY PRECAUTIONS .

-- Follow the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .

-- Remove the rear bench seat. Refer to REAR SEATS, REMOVING AND INSTALLING ,

-- Remove the flange with the fuel filter on the left side of the fuel tank. Refer to FUEL FILTER, REMOVING AND INSTALLING .

-- Siphon the fuel if necessary. Refer to FUEL TANK, DRAINING .

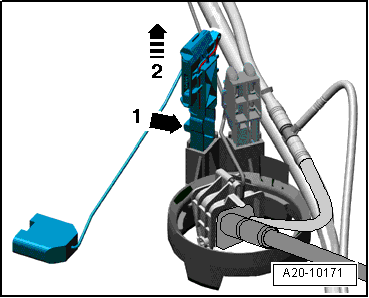

-- Unclip Fuel Level Sensor 2 -G169- -1- and then remove it from the fuel tank.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

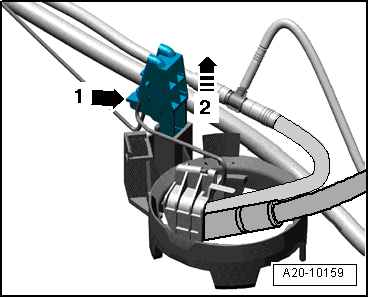

-- Press the tab -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If you want to remove the suction jet pumps, proceed as follows:

-- Fold the right carpet to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the nuts -1 through 4- on the flange cover.

-- Remove the flange cover.

-- Remove the bleed line -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Squeeze the button on the line couplings.

WARNING:

Fuel lines are under pressure.

Danger of personal injury to eyes and skin.

Wear protective eyewear and protective clothing in order to avoid injury and contact with the skin. Wrap a cloth around the connection before loosening hose connections. Open the connection carefully and release the pressure.

-- Place a cloth around the fuel supply line connection -2- and remove the hose coupling.

NOTE:

Squeeze the button on the line couplings.

-- Disconnect the connector -3- from the fuel level sensor and the connector -4- from the fuel pump.

-- Remove the locking ring from the sensor flange using the :T10202 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully lift the sensor flange.

-- Siphon the fuel if necessary. Refer to FUEL TANK, DRAINING .

-- Disconnect fuel pump connector -1- from flange.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove fuel level sensor connector -2- from flange.

-- Remove the sensor flange.

-- Remove the sensor flange with the fuel filter fuel line through the right opening in the fuel tank.

-- Unclip the black filler hoses -1 and 2- off the fuel delivery unit housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuel line -3- to the suction jet pumps.

NOTE:

Press the locking ring to unlock the fuel line.

-- Remove the retainer -2- for the suction jet pumps -3- on the left side of the fuel tank.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The rear suction jet pump -item 10- OVERVIEW - FUEL DELIVERY UNIT, FUEL LEVEL SENSOR AND SUCTION JET PUMPS List Item:Suction Jet Pump cannot be seen in the illustration.

-- Press the tab -1- to remove the suction jet pumps.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Remove suction jet pumps together with filler hoses and pump fuel line from left opening in fuel tank.
