Sill Panel Cover

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

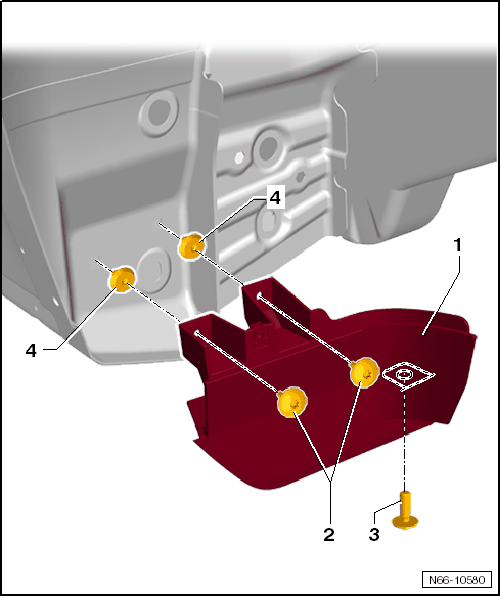

Fig 1: Exploded View Of Sill Panel Cover
GWWN66-10580Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Sill Panel Cover
  2. Bolt
    • 2 Nm
    • Quantity: 2
  3. Bolt
    • 2 Nm
    • Quantity: 1
  4. Expanding Nut
    • Gas-tight
    • Quantity: 1
      CAUTION:

      Check the gas-tight expanding nuts for damage and replace if necessary.

      The expanding nuts seal interior from exhaust fumes. It must always be replaced if damaged.
