Left Rear Wheel Housing Liner: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

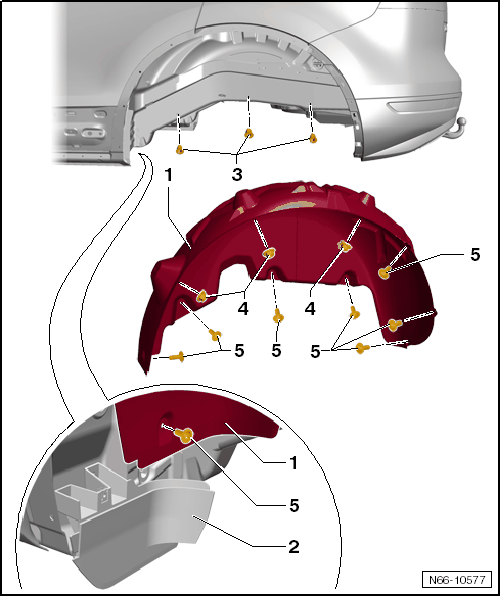

Fig 1: Identifying Left Rear Wheel Housing Liner Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Check the expanding nuts -3- for damage and replace if necessary.

-- Install the rear wheel housing liner -1- in the wheel housing without bending it.

-- Install the bolts -5- and hex nut -4- and tighten in the specified sequence. Refer to BOLT TIGHTENING SEQUENCE .

-- Tightening specification for bolts -5- : 2 Nm.

-- Tightening specification for hex nut -4- : 2.5 Nm.

-- Install the wheel. Refer to WHEEL, CHANGING .
