Cover Strip, Removing And Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Cover Strip, Removing

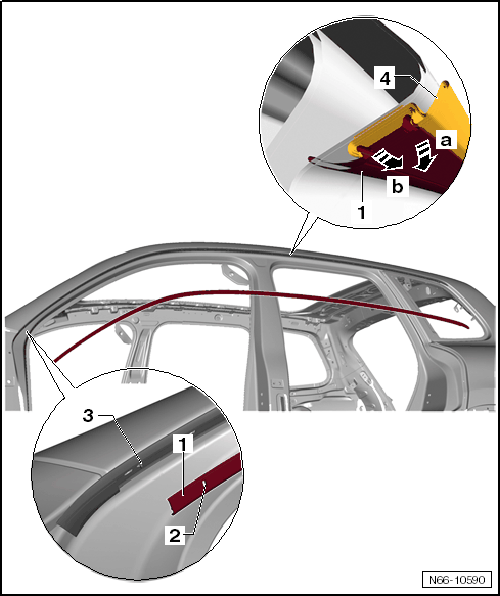

-- Pry the cover strip -1- out of the front edge of the roof pillar strip -4- in direction of -arrow a-.
-- Pull the cover strip out of the roof pillar strip in direction of -arrow b-.
Install the Cover Strip
-- Place the opening -2- of the cover strip on the centering element -3- of the roof pillar strip.
-- Slide the cover strip -1- onto the rear edge of the roof pillar strip -4-.
-- Press the front edge of the cover strip into the roof pillar strip.
