Front Wheel Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

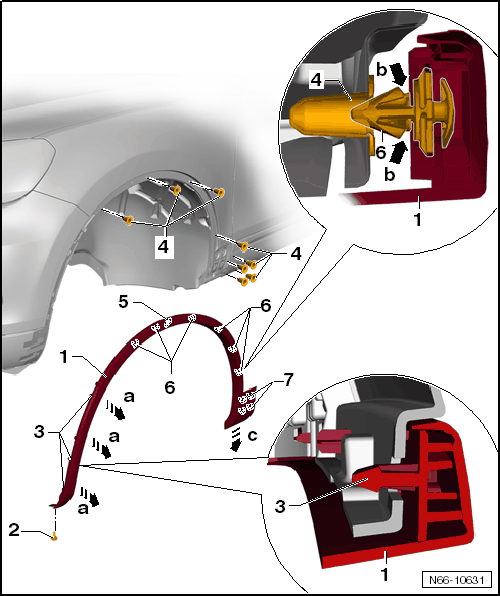

GWWN66-10631Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the front wheel housing liner in the fender region.

-- Remove the bolt -2-.

-- Pull the retaining hook -3- out of the bumper in direction of -arrows a-.

-- Cut the clips -6- -arrows b-.

-- Pull the wheel cover -1- down in direction of -arrow c- out of the remaining clips -7-.
