Overview - Spoiler On The Edge Of The Roof, From 09/2014

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

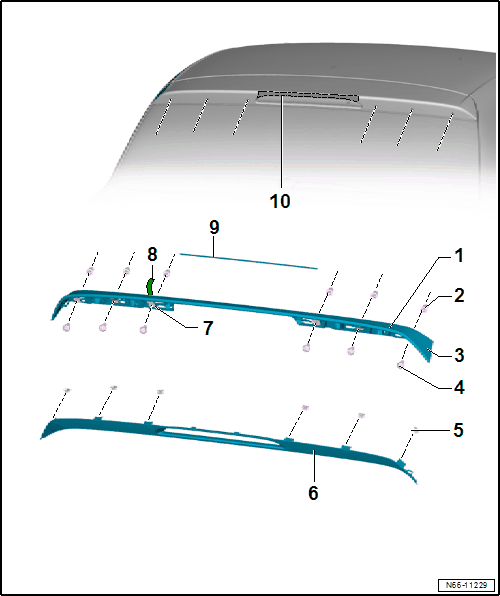

Fig 1: Exploded View Of Spoiler On The Edge Of The Roof, From 09/2014
GWWN66-11229Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Seal
    • Component for spoiler on the edge of the roof
  2. Pop Rivet Nut
    • Quantity: 6
  3. Spoiler on Roof Edge
  4. Bolt
    • Quantity: 6
    • 10 Nm
  5. Clip
    • Quantity: 6
  6. Cover
  7. Washer
    • Component for spoiler on the edge of the roof
  8. Pulling Assist for Adhesive Tape
  9. Adhesive Tape
