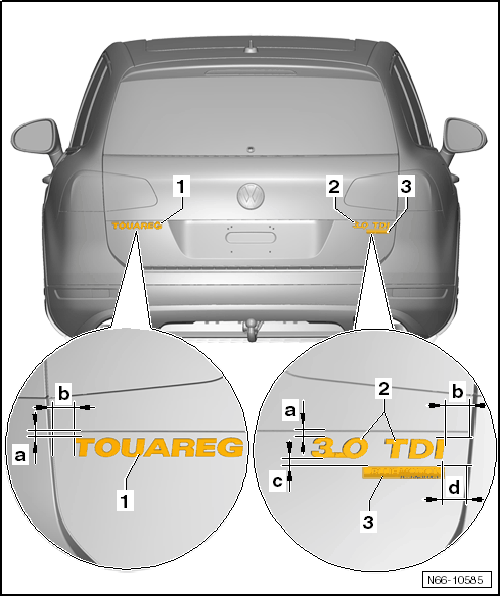

Rear Lid Name Badge And Emblem Dimensions
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Name Badge
- Model name
- Height -a- : 9 mm, from the edge in the rear lid to the name badge
- Side dimension -b- : 32 mm, from the outer edge in the rear lid to the name badge
- Name Badge
- Depending on the type of engine
- Height -a- : 9 mm, from the edge in the rear lid to the name badge
- Side dimension -b- : 32 mm, from the outer edge in the rear lid to the name badge
- Name Badge
- Additional, depending on the model
- Height -c- : 8 mm, from the edge in the rear lid to the name badge
- Side dimension -d- : 30 mm, from the outer edge in the rear lid to the name badge
