Fender Name Badge Dimensions, R-Line

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

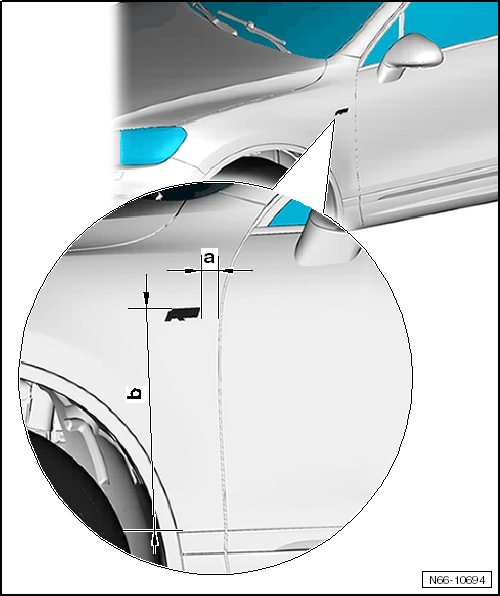

Fig 1: Fender Name Badge Dimensions, R-Line
GWWN66-10694Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Dimension -a- = 40 mm
    • Transfer the dimension -a- from the end of the name badge to the edge of the fender.
  2. Dimension -b- = 470 mm
    • Transfer dimension -b- from the end of the name badge up to the upper edge of the fender.
