Cam Carrier RH

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine from the vehicle. < refer to REMOVAL , Engine Assembly >
Remove the chain cover. < refer to REMOVAL , Chain Cover >
Remove the timing chain RH. < refer to TIMING CHAIN RH , REMOVAL, Timing Chain Assembly >
Remove the cam sprocket RH. < refer to CAM SPROCKET RH , REMOVAL, Cam Sprocket >
NOTE: This procedure is required only when disassembling the cam carrier RH.
Remove the rocker cover RH. < refer to ROCKER COVER RH , REMOVAL, Rocker Cover >

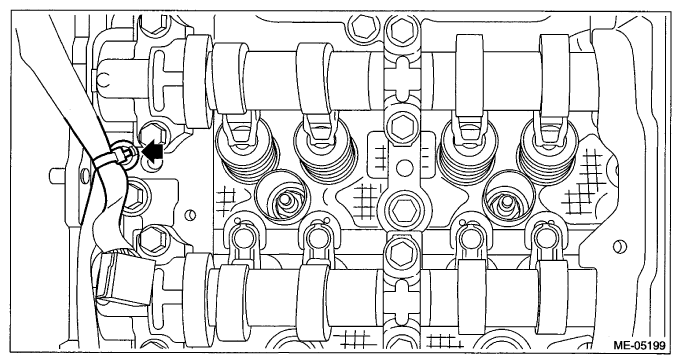

Remove the clip holding the engine harness from cam carrier RH.

Fig 1: Locating Cam Carrier RH Engine Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe RH and the fuel injector RH.

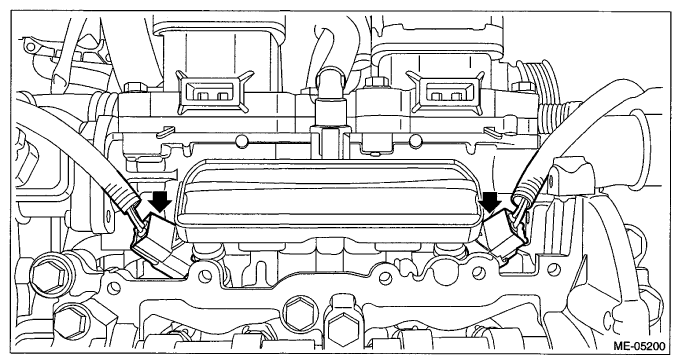

1. Disconnect the connector from fuel injector RH.

  Fig 2: Locating Fuel Injector RH Connectors
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the quick connector from fuel pipe RH.
  NOTE: Disconnect the quick connector as shown in the figure.

  Fig 3: Disconnecting Quick Connector From Fuel Pipe RH
  Courtesy of SUBARU OF AMERICA, INC.

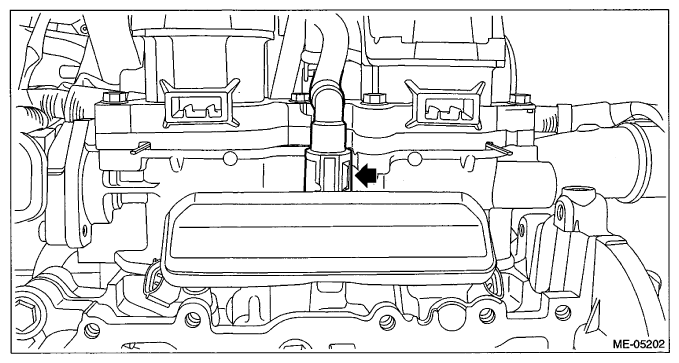

  Fig 4: Locating Fuel Pipe RH Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.

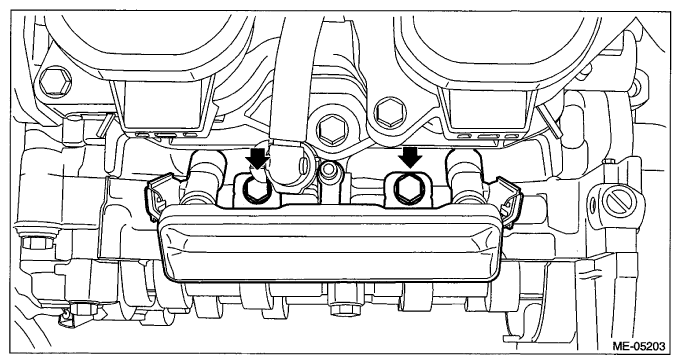

3. Remove the bolts securing the fuel pipe RH, and remove the fuel pipe RH and the fuel injector RH.

  Fig 5: Locating Fuel Pipe RH And Fuel Injector RH Bolts
  Courtesy of SUBARU OF AMERICA, INC.

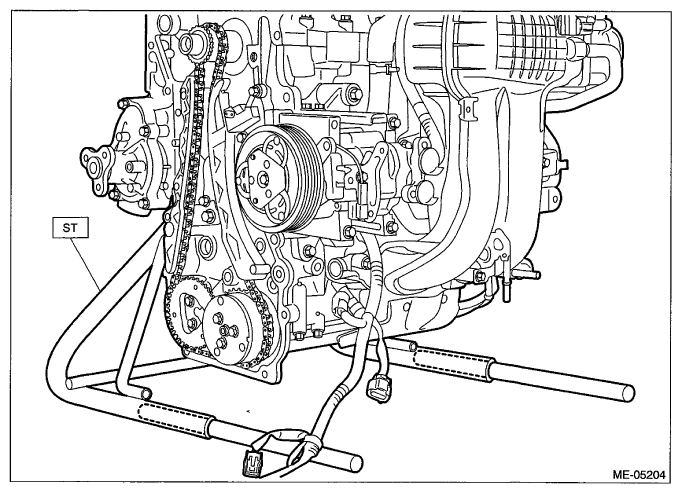

Insert the steel rods into ST, and set the engine so that the camshaft RH is facing up.
CAUTION:
- If the engine is standing on one side without inserting the steel rod into ST, engine may lose balance and fall down. Be sure to insert the steel rod into ST to extend the length.
- Use the steel rod with enough strength.
- Be careful not to pinch the engine harness with ST.
ST 499817100 ENGINE STAND

Fig 6: Inserting Steel Rods Into ST
Courtesy of SUBARU OF AMERICA, INC.

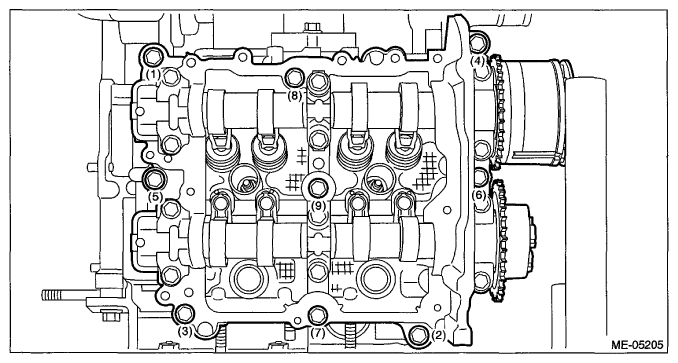

Loosen the bolts holding the cam carrier RH equally, a little at a time in numerical sequence and remove the cam carrier RH.

Fig 7: Identifying Cam Carrier RH Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

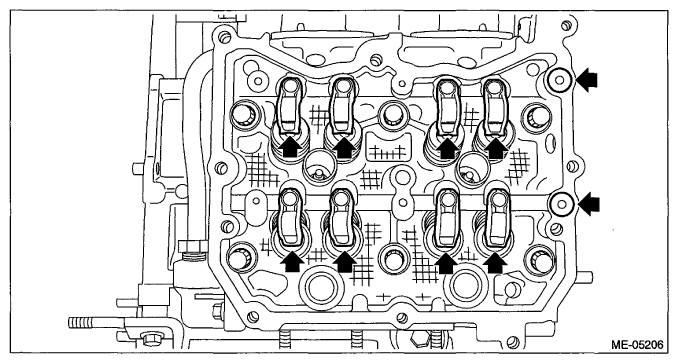

Remove the O-ring and the roller rocker arm from cylinder head RH.
NOTE: Be careful not to confuse the roller rocker arms.

Fig 8: Locating O-Ring And Roller Rocker Arm Of Cylinder Head RH
Courtesy of SUBARU OF AMERICA, INC.

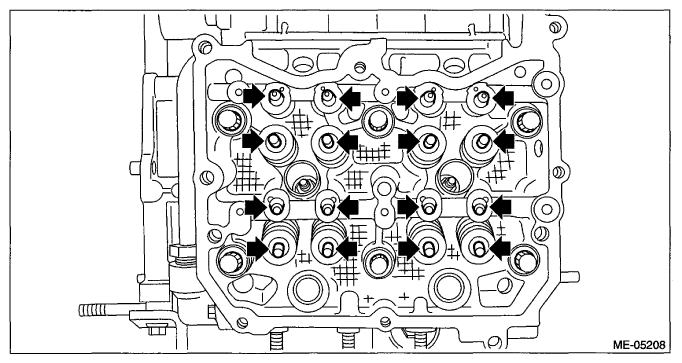

Remove the valve shim and the roller rocker arm pivot from cylinder head RH.
NOTE: Be careful not to confuse the valve shim and the roller rocker arm pivot.

Fig 9: Locating Valve Shim And Roller Rocker Arm Pivot Of Cylinder Head RH
Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from cam carrier RH and cylinder head RH.
