Right Timing Chain Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Engine/Transmission Assembly Removed And Placed On The Scissor Lift Table:VAS6131B .

-- Remove The Right Exhaust Manifold. Refer To EXHAUST MANIFOLD, REMOVING AND INSTALLING .

-- Remove The Throttle Valve Control Module -J338-. Refer To THROTTLE VALVE CONTROL MODULE AND 2 -J338- / -J544-, REMOVING AND INSTALLING .

-- Disconnect The Connector -4-.

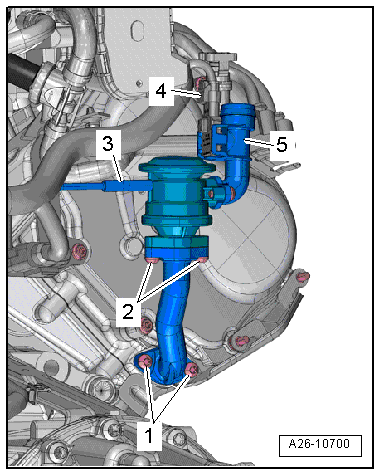

Fig 1: Identifying Bolts -1-, Vacuum Hose -3- And Connector -4-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Vacuum Hose -3-.

-- Remove The Bolts -1- And Remove The Right Secondary Air Injection (Air) Combi-Valve.

NOTE:

Ignore Item -2 And 5-.

-- Remove The Nuts -1- And Bolts -2- And The Heat Shield.

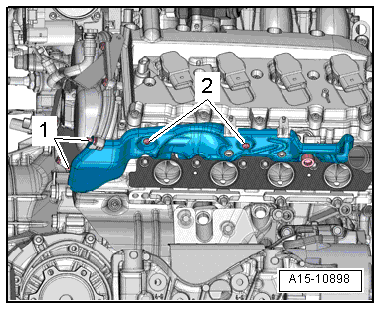

Fig 2: Identifying Nuts -1-, Bolts -2- And Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolts And Threaded Pin In The Following Sequence: -8 To 1-.

Fig 3: Identifying Right Timing Chain Cover, Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Push The Bracket -Arrows A And B- For The Connectors To The Side.

-- Carefully Remove The Right Cover For The Timing Chain From The Bond.
