Overview - Timing Chain Cover: Notes

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

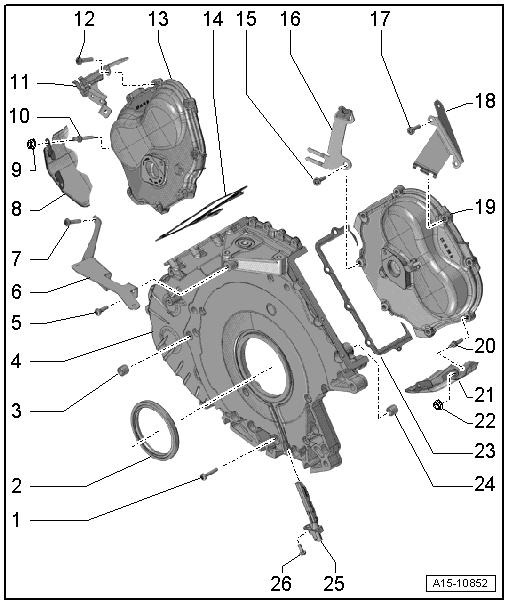

Fig 1: Exploded View Of Timing Chain Covers

Courtesy of AUDI OF AMERICA, LLC

Bolt

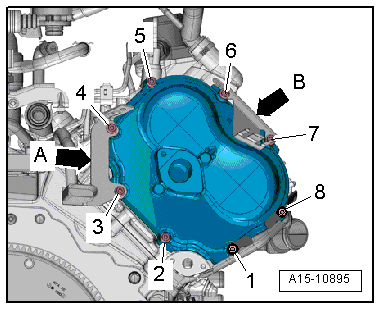

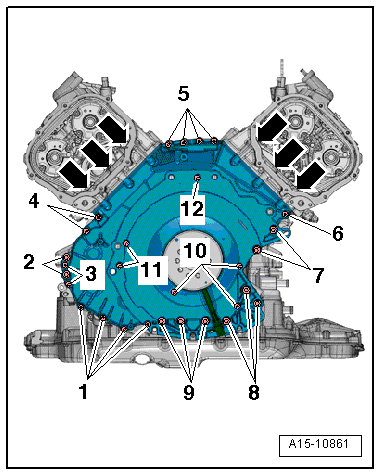

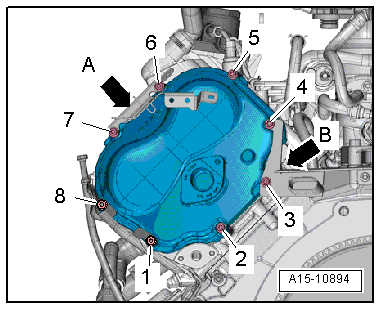

- Tightening specification and sequence. Refer to Figure.
Shaft Seal
- For The Crankshaft On The Transmission Side
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
Alignment Sleeve
- For centering the engine/transmission
- Quantity: 2
Lower Cover
- For The Timing Chains
- Removing and installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Bracket
- For The Electrical Wiring Harness
Bolt
- Tightening Specification And Sequence. Refer To Figure.
Heat Shield
Nut
- 9 Nm
Threaded Pin
- Tightening Specification And Sequence. Refer To Figure.
Bracket
- For The Connectors
Bolt
- Tightening Specification And Sequence. Refer To Figure.
Left Cover
- For The Timing Chain
- Removing And Installing. Refer To LEFT TIMING CHAIN COVER, REMOVING AND INSTALLING .
Left Cylinder Head Gasket
Bolt
- Tightening Specification And Sequence. Refer To Figure.
Bracket
- For The Connectors
Bolt
- Tightening Specification And Sequence. Refer To Figure.
Bracket
- For Electric Wires
Right Cover
- For The Timing Chain
- Removing And Installing. Refer To RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING .
Threaded Pin
- Tightening Specification And Sequence. Refer To Figure.
Heat Shield
Nut
- 9 Nm
Right Cylinder Head Gasket
Alignment Sleeve
- Quantity: 2
Engine Speed Sensor -G28-
- Removing And Installing. Refer To ENGINE SPEED SENSOR -G28-, REMOVING AND INSTALLING .
Bolt
- Tightening Specification. Refer To OVERVIEW - IGNITION SYSTEM .
