Left Timing Chain Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Bolts -1-, Connector -4- And Vacuum Hose -5-, Removal

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission assembly removed and placed on the Scissor Lift Table:VAS6131B .

-- Remove the left exhaust manifold with catalytic converter. Refer to EXHAUST MANIFOLD, REMOVING AND INSTALLING .

-- Remove the Throttle Valve Control Module 2 -J544-. Refer to THROTTLE VALVE CONTROL MODULE AND 2 -J338- / -J544-, REMOVING AND INSTALLING .

-- Remove the vacuum hose -5-.

-- Disconnect the connector -4-.

-- Remove the bolts -1- and remove Secondary Air Injection (AIR) combination valve.

NOTE:

Ignore items -2 and 3-.

-- Remove the bolts -1- and nuts -2- from the heat shield.

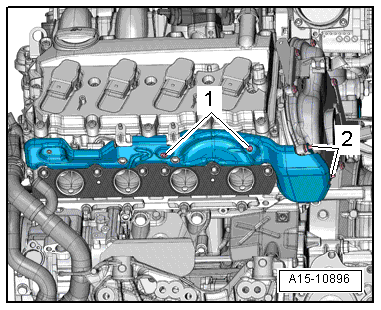

Fig 2: Identifying Bolts -1- And Nuts -2- To Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolt -Arrow- From The Bracket For The Connectors.

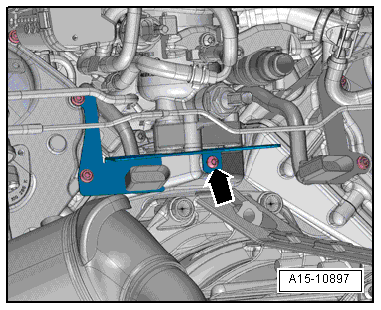

Fig 3: Identifying Bolt -Arrow- From Bracket For Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolts And Threaded Pin In The Following Sequence: -8 To 1-.

Fig 4: Identifying Left Timing Chain Cover, Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bracket -Arrow A- For The Connectors.

-- Push The Bracket -Arrow B- For The Wiring Harness To The Side.

-- Carefully Remove The Left Cover For The Timing Chain From The Bond.
