Left Timing Chain Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Replace The O-Rings.

-- Remove Old Sealant From The Grooves In The Timing Chain Cover As Well As From The Sealing Surfaces.

CAUTION:

Risk Of Contaminating The Lubricating System.

  • Cover Open Parts Of Engine.
Fig 1: Cleaning Remaining Sealant With Rotating Plastic Brush
GWWA13-0590Courtesy of AUDI OF AMERICA, LLC
WARNING:

Danger Of Eye Injury.

  • Wear Protective Eyewear.

-- Remove The Sealant Residue On The Cover For The Timing Chain, Cylinder Block And Cylinder Head, For Example Using A Rotating Plastic Brush.

-- Clean The Sealing Surfaces; They Must Be Free Of Oil And Grease.

NOTE:

Note The Expiration Date Of The Sealing Compound.

Fig 2: Cut Tube Nozzle At Front Marking
GWWA17-0081Courtesy of AUDI OF AMERICA, LLC

-- Cut The Tube Nozzle At The Front Marking (Nozzle Diameter: About 2 mm).

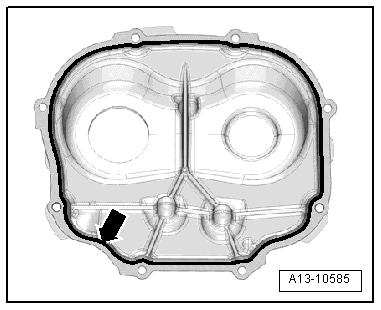

Fig 3: Identifying Sealant Bead -Arrow- On Clean Sealing Surfaces Of Right Timing Chain Cover
GWWA13-10585Courtesy of AUDI OF AMERICA, LLC
CAUTION:

The Lubrication System Could Be Plugged With Excess Sealant.

  • Do Not Apply Sealant Bead Thicker Than Indicated.

-- Apply A Sealant Bead -Arrow- To The Clean Sealing Surfaces Of The Left Timing Chain Cover As Shown In The Illustration.

NOTE:

The Timing Chain Cover Must Be Installed Within 5 Minutes After Applying The Sealant

-- Mount The Left Timing Chain Guard With Both Bracket -Arrows A And B-.

Fig 4: Identifying Left Timing Chain Cover, Tightening Sequence
GWWA15-10894Courtesy of AUDI OF AMERICA, LLC

-- Tighten The Bolts And Threaded Pin. Refer To Figure.

Install In Reverse Order Of Removal. Note The Following:

-- Install The Air Combination Valve. Refer To COMBINATION VALVE, REMOVING AND INSTALLING .

-- Install The Throttle Valve Control Module 2 -J544-. Refer To THROTTLE VALVE CONTROL MODULE AND 2 -J338- / -J544-, REMOVING AND INSTALLING .

-- Install The Exhaust Manifold And Catalytic Converter. Refer To EXHAUST MANIFOLD, REMOVING AND INSTALLING .
