Fastener Tightening Specifications
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
| Components | Fastener Size | Nm |
|---|---|---|
| Bracket for drive chain sprocket | - | 9 |
| Bracket for electrical wiring harness | - | 9 |
| Bracket for idler sprocket 1 | - | 5 + 90° |
| Camshaft adjuster for exhaust camshaft 1 | - | 80 + 90° |
| Camshaft adjuster for intake camshaft 1 | - | 80 + 90° |
| Camshaft adjustment valve 2 | - | 2.4 |

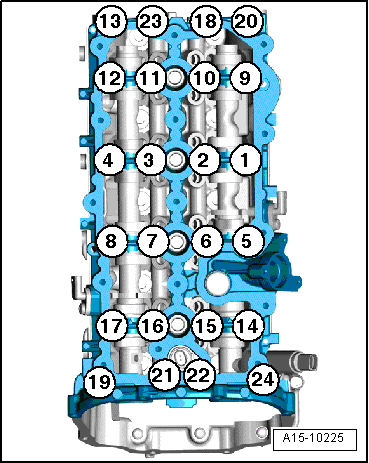

| Camshaft guide frame Tightening Specifications and sequence | - | Figure |
| Chain tensioner for the left camshaft control chain 1 | - | 5 + 90° |
| Chain tensioner for the right camshaft control chain 1 | - | 5 + 90° |
| Chain tensioner 1, 2 | - | 5 + 90° |
| Chain tensioner for the left camshaft control chain 1 | - | 5 + 90° |
| Chain tensioner with glide track 1 | - | 5 + 90° |
| Cylinder head - tightening specification and sequence | - | Figure |
| Drive sprocket for the left camshaft control chain | - | 22 |
| Exhaust camshaft adjustment valve 2 | - | 2.4 |
| Guide rail 1 | - | 17 + 90° |
| Heat shield, nut | - | 9 |
| Left cylinder head cover - tightening specification and sequence | Figure | |
| Left timing chain cover, Tightening Specifications and sequence | Figure | |
| Lower timing chain cover, Tightening Specifications and sequence | - | Figure |
| Mounting pin for idler sprocket | - | 42 |
| Mounting pin for the right camshaft timing chain drive sprocket | - | 9 |
| Right cylinder head cover - tightening specification and sequence" | - | Figure |
| Right timing chain cover, Tightening Specifications and sequence | - | Figure |
| Sealing plug | - | 45 |
| Thrust washer for drive sprocket | - | 22 |
|
||
