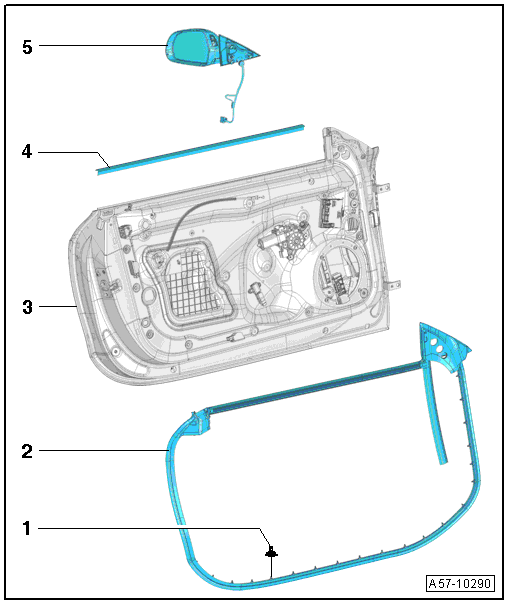

Overview - Window Shaft Strips
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- For the door seal and inner window shaft strip
- Cannot be replaced separately.
- Outer Door Seal
- With inside window shaft strip and exterior mirror seal
- Removing and installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
- Door
- Outer Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Exterior Rearview Mirror
