Engine, Securing On Engine And Transmission Holder: Procedure

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

The engine/transmission subassembly is removed. Refer to ENGINE, REMOVING, VEHICLES WITH AUTOMATIC TRANSMISSION ; the engine and transmission are separated. Refer to ENGINE AND TRANSMISSION, SEPARATING, VEHICLES WITH AUTOMATIC TRANSMISSION .
Engine secured with :VAS6131/13-7 .

NOTE:

Place A Cloth Underneath To Soak Up Any Escaping Power Steering Fluid.

Fig 1: Identifying Power Steering Hydraulic Pipe -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the power steering hydraulic pipe -arrow-.

-- Free up the electrical wire on the left lower coolant pipe.

Fig 2: Disconnect Upper Coolant Hose From Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and lower left coolant pipe from the coolant hoses -arrows-.

NOTE:

Ignore item -1-.

-- Engage the :3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

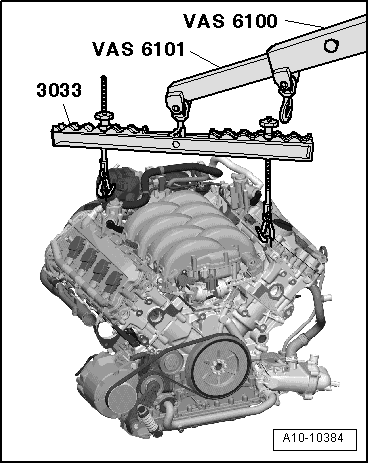

Fig 3: Engaging Lifting Tackle 3033 On Engine Lifting Eyes And On Shop Crane VAS 6100 With Lift Arm Ext./Workshop Hoist VAS 6101

Courtesy of AUDI OF AMERICA, LLC

-- Tension engine slightly with shop crane, do not raise.

NOTE:

Ignore items -1 and 2 - and -arrows-.

-- Disconnect the connector -3- from the Left Electrohydraulic Engine Mount Solenoid Valve -N144-.

Fig 4: Identifying Bolt For Left Engine Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4- for the left engine mount.

-- Disconnect the connector -2- from the Right Electrohydraulic Engine Mount Solenoid Valve -N145-.

Fig 5: Identifying Engine Mount Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine mount bolt -1-.

NOTE:

Ignore items -3 and 4- and -arrow-.

-- Remove the :VAS6131/13-7 from the engine.

Fig 6: Identifying VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

-- Remove the bolts -arrows- and the left engine support.

Fig 7: Identifying Bolts And Left Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

Fig 8: Identifying Bolts -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and slightly press the Secondary Air Injection (AIR) tube downward.

Fig 9: Removing Bolt -2- And Lay Secondary Air Pipe Aside

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and free up the Ground (GND) wire at the engine support.

-- Remove the bolts -arrows- and the right engine support.

-- Secure the starter on the engine.

-- Secure the engine with :VAS6095/1 and :VAS6095/1-6A on the :VAS6095 to 40 Nm as shown in the illustration.

Fig 10: Securing Engine To VAS 6095 Using VAS 6095/1 And VAS 6095/1-6A

Courtesy of AUDI OF AMERICA, LLC
