Left Exhaust Manifold, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper left coolant pipe. Refer to UPPER LEFT COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the left front wheel. Refer to WHEELS AND TIRES .

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Loosen the nuts in the sequence -6 to 1-.

Fig 1: Loosening Sequence Left Exhaust Manifold Nut

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Installation Location Is Shown With The Engine Removed.

Both securing straps remain installed.

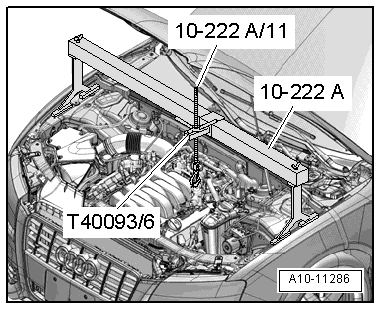

-- Install the :10-222A with the :T40093/6 on the left and right suspension strut tower, as shown in the illustration.

Fig 2: Installing 10 - 222 A With Adapter T40093/6 On Left & Right Strut Towers

Courtesy of AUDI OF AMERICA, LLC

-- Attach the :10-222A/11 to the left engine lifting eye.

-- Lightly pretension the engine using the spindle.

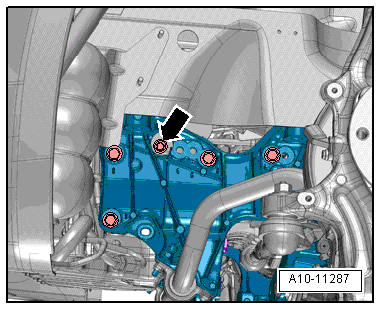

-- Remove the bolt -arrow- from the left engine mount.

Fig 3: Identifying Left Engine Mount & Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Lift the engine using the :10-222A/11 to dimension -a-.

Dimension -a- = approximately 30 mm.

-- Remove the nuts. Loosen the left exhaust manifold from the retaining strip and remove it.
