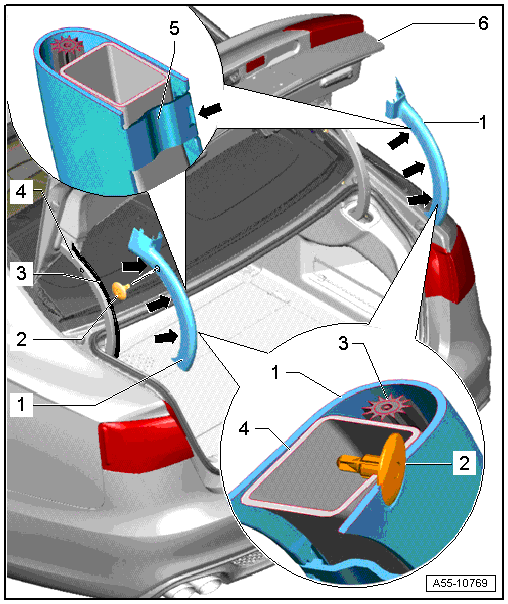

Overview - Rear Lid, Sedan, Hinge Cable Guide
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Hinge Cable Guide
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING
- Expanding Clip
- Rear Lid Emergency Release
- Routing. Refer to LID LATCH EMERGENCY RELEASE, REMOVING AND INSTALLING, SEDAN
- Lid Hinge
- Tab
- Rear Lid
