Routing on the Lid Side:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

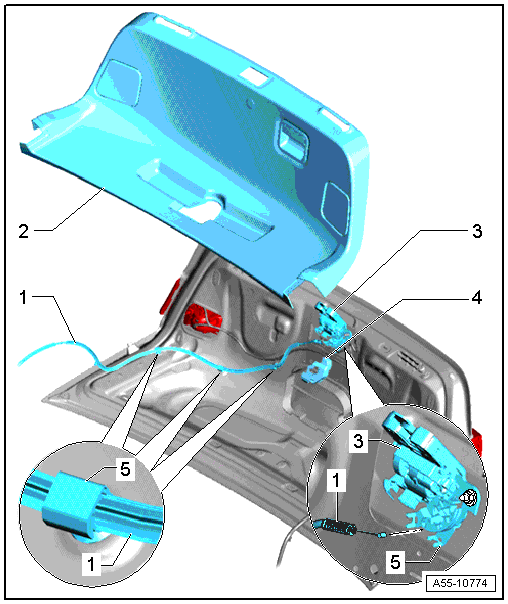

GWWA55-10774Courtesy of AUDI OF AMERICA, LLC
  1. Release Cable
    NOTE:

    When re-installing, route the release cable starting from the lid latch on the inside of the lid, over the hinge and into the vehicle interior.

    The clips for the cable have been prepositioned and can be inserted into the holes.

    • Before removing, unclip the cover on the latch
    • First unclip from the cable bracket on the latch and then disengage from the release lever.
  2. Rear Lid Trim Panel
  3. Latch
  4. Cover
    • Unclip from the rear lid latch
  5. Release Lever for Emergency Release
    • When installing, first engage the release cable on the release lever and then press it into the cable bracket on the latch.
  6. Clip
    • Pre-positioned on the release cable
