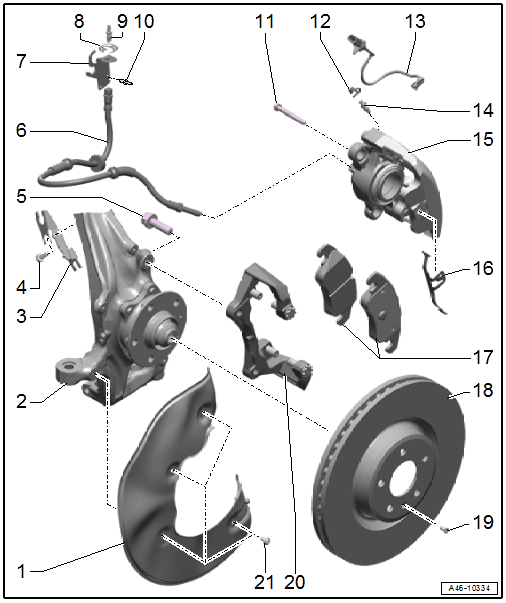

Overview - Front Brakes, Steel Brakes, 1LA/1LJ
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Shield
Refer to BRAKE SHIELD, REMOVING AND INSTALLING .
- Stub Axle Carrier
- Bracket
- For brake hose and wire
- Bolt
- 9 Nm
- Bolt
- 196 Nm
- Replace after removing
- With a washer
- Quantity: 2
- Brake Hose
- Tightening specification, brake hose to brake caliper, 20 Nm
- Replace if damaged
- Pay attention to the correct routing: make sure the brake hose is not blocked, bent or rubbing against the vehicle
- Make sure that tabs are properly seated in the grooves on the bracket.
- Bracket
- For brake hose
- Spring
- Replace if damaged
- Brake Line
- Tightening specification, brake line to brake hose, 16 Nm
- Rivet
- Quantity: 2
- Bolt
- 30 Nm
- Quantity: 2
- Protective Dust Cap
- Brake Pad Wear Sensor
- Left Front Brake Pad Wear Sensor -G34-, Right Front Brake Pad Wear Sensor -G35-
- For inner brake pad
- Replace if damaged
- Refer to BRAKE PAD WEAR INDICATOR WIRE, REMOVING AND INSTALLING, STEEL BRAKES, 1LA/1LJ
- Bleed Screw
- 13 Nm
- Refer to HYDRAULIC SYSTEM, BLEEDING .
- Brake Caliper
- Allocation. Refer to the parts information.
- Do not loosen the brake caliper threaded connections. Refer to Fig 2.
Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
Refer to BRAKE CALIPER, REPLACING .
- Servicing. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, 1LA/1LJ
.NOTE:
Depending on the model there are two balance weights installed in each front brake caliper.
- Balance Spring
- Make sure the balance spring is correctly installed
- Tab of the balance spring engages into the brake caliper
- Brake Pads
- Always replace on both sides of the axle
- Allocation. Refer to the parts information.
- Inner brake pad with brake pad wear sensor
- Checking pad thickness. Refer to appropriate service information
Refer to BRAKE PADS, REMOVING AND INSTALLING
- Brake Rotor
- Always replace on both sides of the axle
- Allocation. Refer to the parts information.
- Wear limit. Refer to TECHNICAL DATA, BRAKES
.
Refer to BRAKE ROTOR, REMOVING AND INSTALLING .
- Do not use force to separate the brake rotor from the wheel hub. If required use rust remover otherwise there will be damage to the brake rotors
- Bolt
- 10 Nm
- Brake Carrier
- Do not loosen the retaining pin. Refer to Fig 3.
- Brake Caliper with Brake Carrier, removing and installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING, STEEL BRAKES, 1LA/1LJ .
- Bolt
- 10 Nm
- Quantity: 4
NOTE:
Coat the brake pad - backing plate with grease pate and coat the guide pin with lithium grease. Refer to the parts information.

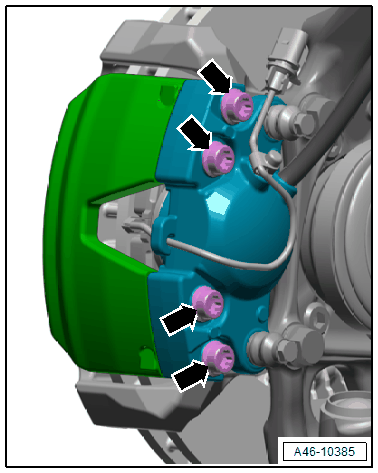

CAUTION:
Risk of malfunction.
- Do not loosen the bolts -arrows- on the brake caliper.
CAUTION:
Risk of malfunction.
- Do not loosen the retaining pins -arrows- on the brake carrier.
