Overview - Fuel Tank [XXXX]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

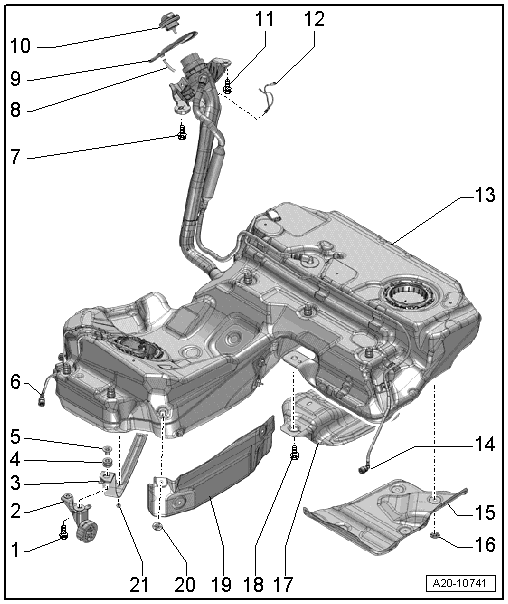

- Bolt
- 20 Nm
- Suspended Mount
- For exhaust system
- Individual components of the mount. Refer to appropriate service information.
- Mounting Strap
- Individual components of the mount. Refer to appropriate service information.
- Adjusting Buffer
- Individual components of the mount. Refer to appropriate service information.
- Spacer Sleeve
- Individual components of the mount. Refer to appropriate service information.
- Fuel Line
- From the fuel pressure regulator to the engine
- Do not kink
- Clipped to the fuel tank
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Bolt
- 20 Nm
- Overflow Hose
- Fuel Filler Door Insert
- Cap
- Turn until it clicks and locks.
- Attached to the fuel filler door insert with an permanent fastener
- Bolt
- 20 Nm
- To attach the fuel filler neck
- Ground Connection
- For fuel filler tube
- For discharging electrostatic charge. .
- Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Breather Line
- To the EVAP canister
- Do not kink
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Heat Shield
- For the fuel tank
- Lock Washer
- 2 Nm
- For heat shield
- Carrier Plate
- Bolt
- 20 Nm
- Heat Shield
- For the fuel tank
- Lock Washer
- 2 Nm
- For heat shield
- Expanding Clip

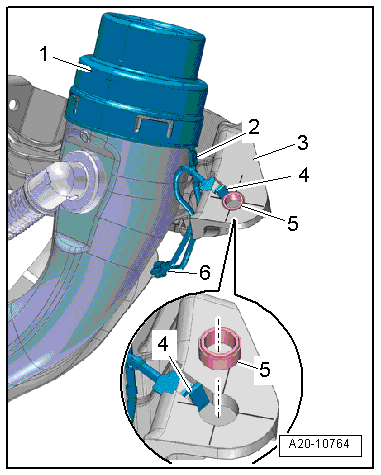

-- Route the ground connection as illustrated.
-- Make sure the following connectors are secure:
- Connector -2- for the ground connection on the threaded ring -1- of the fuel filler tube.
- Ground connector -6- on the fuel filler tube cover.
-- Attach the ground connection contact -4- to the hole in the fuel tank -3- and then install the spacer -5-.
WARNING:
Risk of explosion due to electrostatic charge.
- After installing, check electrical connection on fuel filler neck metal ring to an empty spot on the body using an Ohm meter.
- Specified value: approximately 0 Ω.
- Exhaust system mount - only right front inside
- Adjusting buffer
- Mounting strap
- Spacer sleeve
- Bolt
