Power Steering Pump Drive Seal, Replacing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Seal Installer - Power Steering/Oil Pump :T40193
Puller - Shaft Seal :T40195

-- Remove The Steering Gear. Refer to STEERING GEAR, REMOVING AND INSTALLING .

-- Remove the cover -Item ) OVERVIEW - POWER TAKE-OFF.

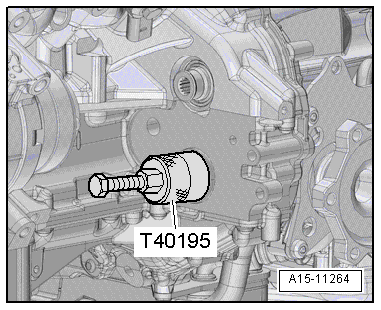

-- Rotate the spindle on the :T40195 all the way back.

Courtesy of AUDI OF AMERICA, LLC

-- Lubricate the seal remover threaded head, position it, and then install it into the shaft seal as far as possible using strong force.

-- Rotate the inner section of the seal puller against the spur gear unit until the shaft seal is removed.

NOTE:

If The Shaft Seal Breaks, Position The Seal Puller A Second Time And Remove The Rest Of The Seal.

-- Clamp the seal puller in a vise at the hex bolt and remove the shaft seal with pliers.

-- Clean the running and sealing surface.

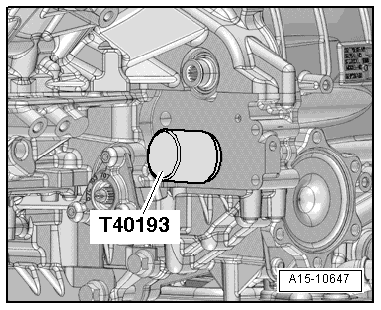

-- Drive in the shaft seal with the :T40193 until it stops.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Installation Location Is Shown With The Engine Removed.

-- Install the steering gear. Refer to STEERING GEAR, REMOVING AND INSTALLING .
