Sealant Applied To Cylinder Block For Guide Frame
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
-- Clean any oil or grease off the sealing surfaces.
CAUTION:
The Lubrication System Could Be Plugged With Excess Sealant.
- Do not apply sealant beads thicker than indicated.

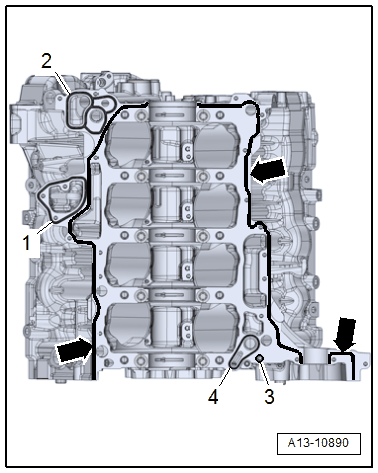

-- Apply sealant beads -arrows- to the clean sealing surfaces as shown in the illustration.
- Thickness of sealant beads: 2.0 mm.
-- Place the seals -1, 2 and 4- and O-ring -3-.
NOTE:
The Guide Frame Must Be Installed Within 5 Minutes After Applying The Sealant.
