Water Pump

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump to oil pan upper.
    NOTE: Use a new gasket.

    Tightening torque:

    6.4 N-m (0.7 kgf-m, 4.7 ft-lb)

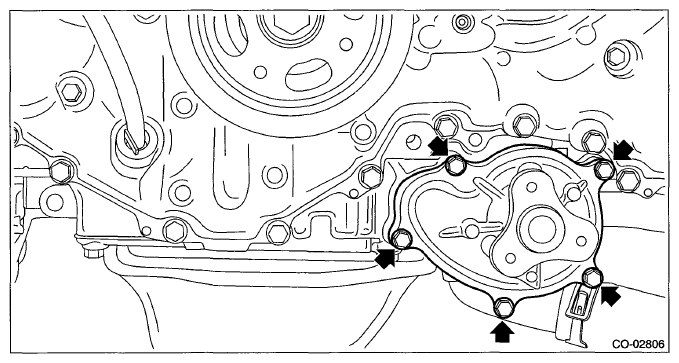

    Fig 1: Locating Water Pump Mounting Bolts
    G07665025Courtesy of SUBARU OF AMERICA, INC.
  2. Install the front exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
  3. Install the water pump pulley. < Ref. to WATER PUMP PULLEY , INSTALLATION, Water Pump. >
  4. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
