Rear Vent Air Guide Slots, Sealing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This air guide is attached to the air outlet openings of the A/C unit. There are slits inside the air guide. If the door position is incorrect, especially on vehicles with the "Convenience" A/C system, whistling noise can come from these slits. The upper slits are covered with tape during production (running change from February 2009).

-- Cover The Upper Center Console To Prevent Damage.

-- Remove the Radio -R- and Multimedia System Control Head -E380-. Refer to RADIO, REMOVING AND INSTALLING and INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

-- Remove the Climatronic Control Module -J255- A/C display and control head. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .

-- If equipped, remove the Front Information Display Control Head Control Module -J523-.

-- Reach into the opening in the center console and cover both slits at the top -A- of the air guide -C- with adhesive tape -B- (approximately 2 cm x 4 cm, made of air-tight material).

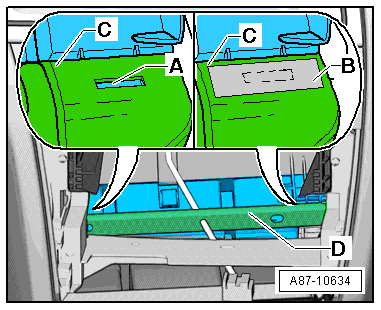

Fig 1: Identifying Center Console Slots

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The slots -A- are covered by the brace -D-.

Cut out, for example, two adhesive strips -B- from the insulation (replacement part number 8E0 260 329). Refer to the Parts Information.
