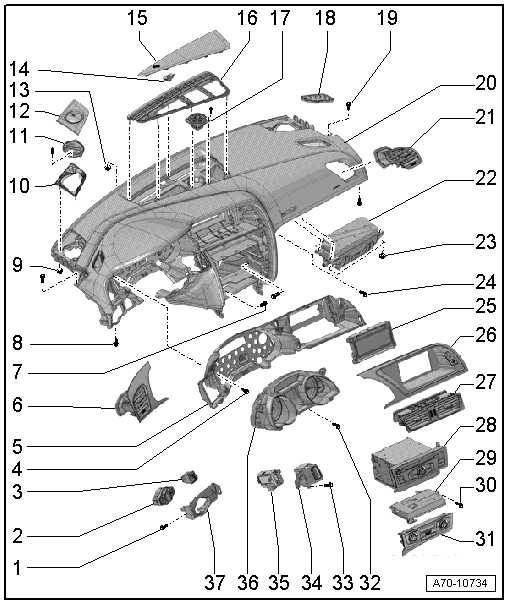

Overview - Instrument Panel
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.5 Nm
- Quantity: 3
- Light Switch -E1-
- Removing and Installing. Refer to INSTRUMENT PANEL AND SWITCH ILLUMINATION DIMMER SWITCH -E20-, REMOVING AND INSTALLING .
- Headlamp Range Control Adjuster -E102-
- Removing and Installing. Refer to HEADLAMP RANGE CONTROL ADJUSTER -E102-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 6
- Frame
- For instrument cluster
- Removing and installing. Refer to INSTRUMENT CLUSTER FRAME, REMOVING AND INSTALLING .
- Left Side Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, SIDE INSTRUMENT PANEL VENT .
- Bolt
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 2
- Nut
- 0.5 Nm
- Quantity: 6NOTE:
Tighten The Nuts Carefully To Prevent The Mounting Pins On The Speaker Trim From Shearing Off.
- Mount
- For speaker
- Removing and installing. Refer to SPEAKER MOUNT, REMOVING AND INSTALLING .
- Mid-Range Speaker
- Equipment levels
- Removing and installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
- Side Speaker Trim
- Equipment levels
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, SIDE SPEAKER TRIM .
- Nut
- 0.5 Nm
- Quantity: 6NOTE:
Tighten The Nuts Carefully To Prevent The Mounting Pins On The Defroster Vent From Shearing Off.
- Sunlight Photo Sensor -G107-
- Removing and installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
- Center Speaker Trim
- Equipment levels
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, CENTER SPEAKER .
- Upper Center Defroster Vent
- Removing and installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
- Mid-Range Speaker
- Equipment levels
- Removing and installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
- Upper Side Defroster Vent
- Bolt
- 3 Nm
- Quantity: 2
- Instrument PanelWARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Follow the allocation of the airbag to the instrument panel.
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Right Side Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, SIDE INSTRUMENT PANEL VENT .
- Front Passenger AirbagWARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Follow the allocation of the airbag to the instrument panel.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Locking and activating possible with key switch
- Nut
- Tightening Specification. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Bolt
- 3 Nm
- MMI Screen
- Removing and Installing. Refer to INFOTAINMENT SYSTEM .
- Cover
- For MMI screen
- Removing and installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .
- Center Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .
- Radio/Navigation System
- Equipment levels
- Removing and installing. Refer to RADIO, REMOVING AND INSTALLING .
- Installation Frame, Removing and Installing. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING
- Front Information Display Control Head Module -J523-
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Bolt
- Tightening Specification. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Climatronic Control Module -J255-
- Removing and installing. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to INSTRUMENT CLUSTER .
- Bolt
- 3 Nm
- Trim
- For Access/Start Authorization Switch -E415-
- Removing and installing. Refer to ACCESS/START AUTHORIZATION SWITCH TRIM, REMOVING AND INSTALLING .
- Access/Start Authorization Switch -E415-
- Removing and Installing. Refer to ACCESS/START AUTHORIZATION SWITCH -E415-, REMOVING AND INSTALLING .
- Instrument Cluster
- Removing and installing. Refer to INSTRUMENT CLUSTER .
- Light Switch Trim
- Removing and installing. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .
