WIRING DIAGRAM [CAEB, CAED, CPMA, CPMB] (1 Of 2) (CABRIOLET)
>>
Wiring Diagram(S)
>>

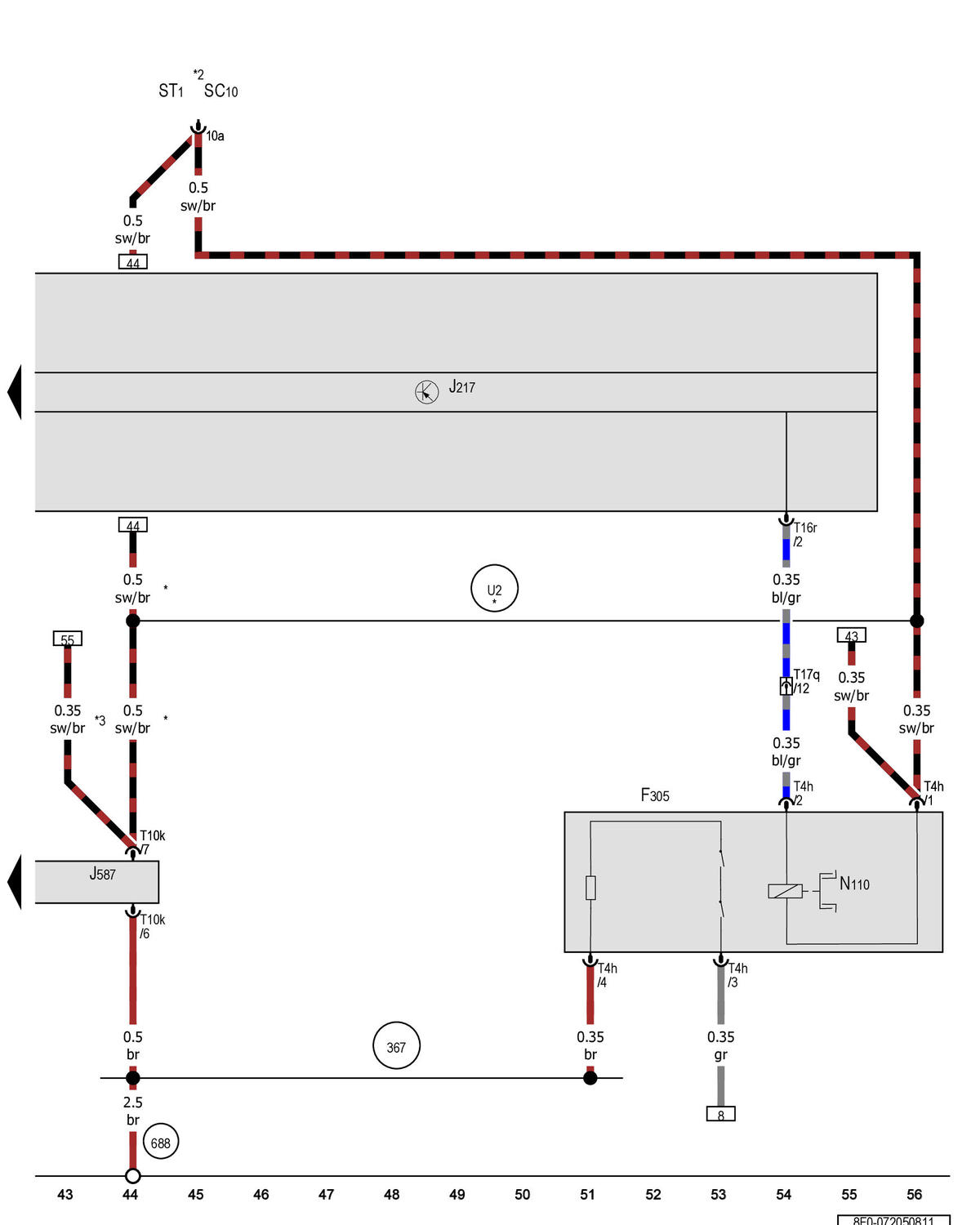

Transmission Park Selector Switch, Transmission Control Module, Selector Lever Sensor System Control Module, Shift Lock Solenoid
>>
Notes
Transmission Park Selector Switch, Transmission Control Module, Selector Lever Sensor System Control Module, Shift Lock Solenoid: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
