Front Belt Latch Anchorage Point Assembly Overview

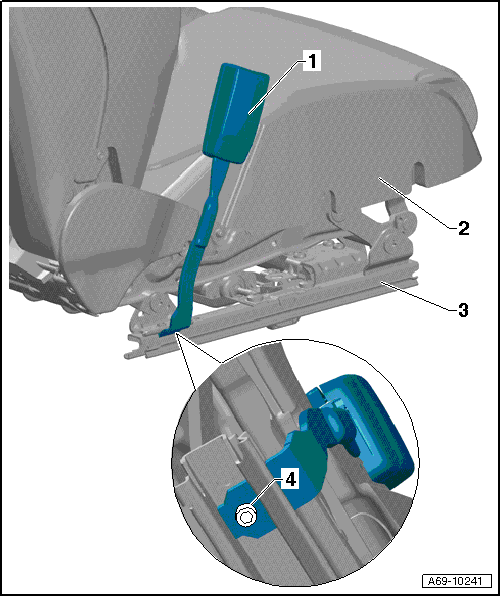

Fig 1: Front Belt Latch Anchorage Point Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Belt latch
   • Belt latch without seat belt fasten sensor, removing and installing, refer to FRONT BELT LATCH ANCHORAGE POINT
   • Passenger airbag deactivation seat occupied recognition seat belt latch (for specific countries), removing and installing, refer to FRONT BELT LATCH ANCHORAGE POINT  (versions of seat belt latch not shown in illustration)
   • Always replace the seat belt latch if the belt tensioner has deployed with the belt on
2. Front seat
3. Seat frame
4. Bolt
   • Bucket Seat ONLY, 22 Nm
   • All others, 34 Nm
   • Replacing
