Transmission Input Speed Sensor And Clutch Oil Temperature Sensor

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Proceed as follows:

CAUTION:

Risk of transmission damage.

Do not run engine or tow vehicle with oil pan removed or without transmission fluid.

NOTE:

Observe general repair notes. Refer to REPAIR INSTRUCTIONS .

Observe cleanliness rules when working on transmissions. Refer to CLEAN WORKING CONDITIONS .

-- Drain transmission fluid. Refer to TRANSMISSION FLUID, CHANGING AND FILLING .

-- Remove oil pan. Refer to OIL PAN .

-- Remove direct shift gearbox (DSG) mechatronic -J743-. Refer to MECHATRONIC .

-- Remove bolt -B-.

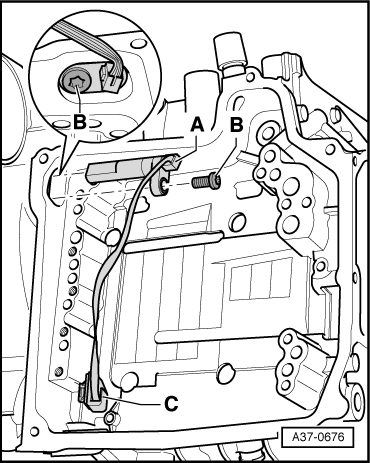

Fig 1: Transmission Sensors And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove transmission input speed (RPM) sensor -G182- and clutch oil temperature sensor -G509- -A- together with wire from transmission.

Installing

Tightening specifications, refer to OIL PAN, MECHATRONIC, AND TRANSMISSION OIL PUMP ASSEMBLY OVERVIEW , Figure

Installation is in reverse order of removal, note the following:

-- Coat transmission input speed (RPM) sensor -G182- and clutch oil temperature sensor -G509- with gear oil.

-- Insert transmission input speed (RPM) sensor -G182- and clutch oil temperature sensor -G509- in side opening on transmission and tighten Figure

-- Install direct shift gearbox (DSG) mechatronic -J743-. Refer to MECHATRONIC .

-- Install oil pan. Refer to OIL PAN .

-- Top off transmission oil. Refer to TRANSMISSION FLUID, CHANGING AND FILLING and check oil level TRANSMISSION FLUID, CHANGING AND FILLING .

-- Connect vehicle diagnosis, testing, and information system VAS 5051B.

-- Perform basic setting
