Oil Pan, MECHATRONIC, And Transmission Oil Pump Assembly Overview: Notes

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Ignore items -8 through 14- here, for a description. Refer to TRANSMISSION OIL COOLER AND OIL FILTER ASSEMBLY OVERVIEW .

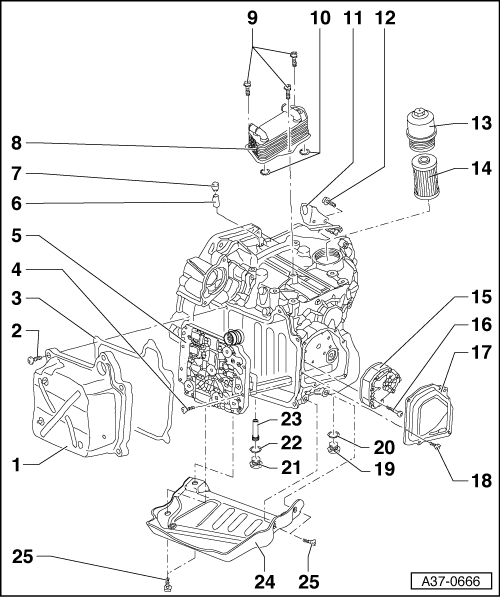

Fig 1: Gear Oil Filter Component Overview

Courtesy of AUDI OF AMERICA, LLC

1 -
Oil Pan
- Removing and installing, refer to OIL PAN
2 -
Bolt
- Replace
- Qty. 5
- Tightening sequence OIL PAN, MECHATRONIC, AND TRANSMISSION OIL PUMP ASSEMBLY OVERVIEW
3 -
Gasket
- Replace
4 -
Bolt
- Replace
- Qty. 10
- Tightening sequence OIL PAN, MECHATRONIC, AND TRANSMISSION OIL PUMP ASSEMBLY OVERVIEW
5 -
Direct Shift Gearbox (DSG) Mechatronic -J743-
- With O-rings on connector
- Replace O-rings
- Removing and installing, refer to MECHATRONIC
6 -
Breather Tube
- Pressed into transmission
- Replace after removal
7 -
Breather Cap
- Inserted on ventilation tube
15 -
Transmission Oil Pump
- Removing and installing, refer to TRANSMISSION OIL PUMP
- Insert with new seal
16 -
Bolt
- Replace
- Tightening sequence OIL PAN, MECHATRONIC, AND TRANSMISSION OIL PUMP ASSEMBLY OVERVIEW
- Qty. 4
- Different bolts depending on version
17 -
Transmission Oil Pump Cover
- Replace
- With seal
- Removing and installing, refer to TRANSMISSION OIL PUMP
18 -
Bolt
- Replace
- Tightening sequence OIL PAN, MECHATRONIC, AND TRANSMISSION OIL PUMP ASSEMBLY OVERVIEW
- Qty. 4
- Different bolts depending on version
24 -
Shield
- Depends on version
25 -
Bolt
- 32 Nm
- Qty. 4
