Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

Procedure

Fig 1: Identifying Transmission Separated From Engine

Courtesy of AUDI OF AMERICA, LLC

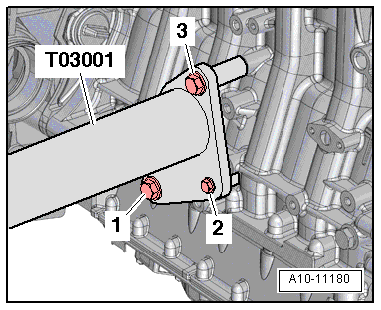

-- Tighten the T03001 on the cylinder block:

-- Hook 2024 A to the engine and to the VAS 6100.

Fig 2: Hooking 2024 A To Engine And To VAS 6100

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.

WARNING:

Loose engine support bridge components could cause an accident.

Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.

-- Raise the engine from the T03000 using the VAS 6100.

-- Attach the engine and engine bracket with T03001 to the VAS 6095.
