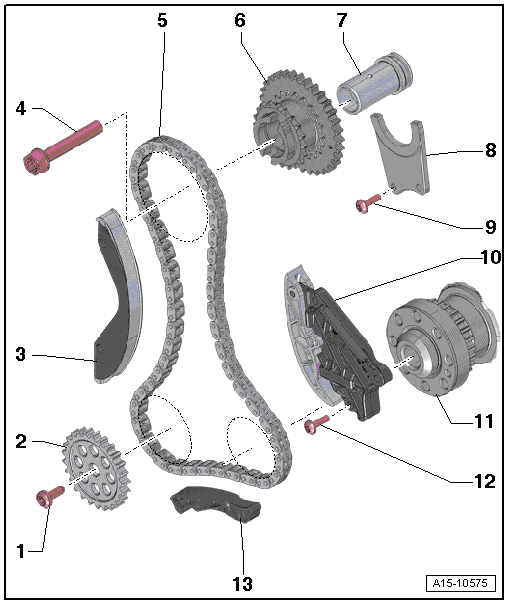

Timing Mechanism Drive Chain Overview
- Bolt
- 20 Nm plus an additional 90° turn
- Replace
- Oil Pump Drive Sprocket
- Guide Rail
- Bolt
- 60 Nm plus an additional 90° turn
- Replace
- Power Take-Off Drive Chain
- Mark the running direction with paint before removing.
- Removing and installing, refer to TIMING MECHANISM DRIVE CHAIN
- Drive Chain Sprocket for the Camshaft Timing Chain
- To remove, remove bolts -4- and -9-, then remove the drive chain sprocket together with the pivot pin -7-.
- Drive Chain Sprocket Pivot Pin
- Axial Bearing Disc
- Bolt
- 9 Nm
- Chain Tensioner
- Crankshaft
- Bolt
- 9 Nm
- Guide Rail
