Coolant Pipes Overview

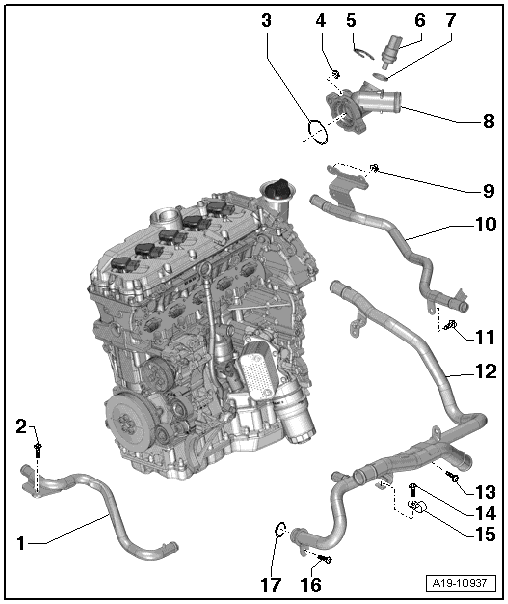

Fig 1: Identifying Coolant Pipes Overview

Courtesy of AUDI OF AMERICA, LLC

Right Coolant Pipe
- Removing and installing, refer to RIGHT COOLANT PIPE
Bolt
- 9 Nm
O-ring
- Replace
Nut
- 9 Nm
Retaining Clip
Coolant Temperature Sensor -G62-
- Removing and installing, refer to Engine Coolant Temperature Sensor -G62-
O-ring
- Replace
Coolant Connection
Nut
- 9 Nm
Left Coolant Pipe
- Removing and installing, refer to LEFT COOLANT PIPE
Bolt
- 9 Nm
Front Coolant Pipes
- Removing and installing, refer to FRONT COOLANT PIPES
Bolt
- 9 Nm
Bolt
- 9 Nm
Clamp
Bolt
- 9 Nm
O-ring
- Replace
