Headlamps, Adjusting

Procedure

Follow the complete test and adjustment requirements. Refer to HEADLAMPS CHECKING AND ADJUSTING CONDITIONS .

Vehicles with halogen headlamps

-- Set range control knurled wheel to "0" position.

Vehicles with gas discharge headlamps

-- Select the "basic setting" function in "Guided Fault Finding" or "Guided Functions" using the Vehicle diagnostic tester.

-- Select the function or path in the "guided functions" operating mode:

Vehicle brand
	Engine codes
		55 Dynamic range control with (with cornering lamp) J431
			55 Basic setting (repair group 94)

-- Follow further instructions on display of Vehicle Diagnostic Tester.

All Vehicles

Fig 1: Headlamp Adjustment Graph

Courtesy of AUDI OF AMERICA, LLC

-- Switch on low beams.

The horizontal light-dark border must touch the dividing line -1- on the adjusting unit test surface.
The point -2- between the left horizontal part and the right vertical part of the light-dark border must run vertically through the central mark -3-. The bright core of the light beam must be to the right of the vertical.

NOTE:

To determine the inflection point -2- more easily, cover and uncover the left half of the headlamp several times. Then check the low beam again.

After correct headlamp adjustment, the center of the high beam light beam must be on the central marking -3-.

-- To adjust the height of the headlamp, set the light-dark border just under the dividing line with the adjustment screw -1-.

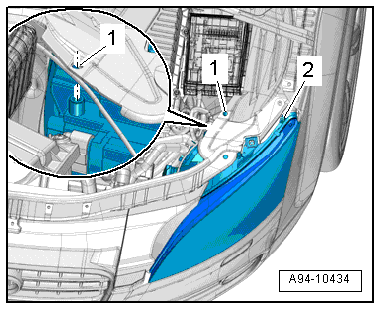

Fig 2: Locating Headlamp Adjustment Screw

Courtesy of AUDI OF AMERICA, LLC

-- Then adjust the light-dark border, starting from the bottom, on the dividing line.

-- For side adjustment, turn adjusting screw -2-.

NOTE:

The allocation on the right headlamp is reversed.

Vehicles with gas discharge headlamps

-- After the headlamp is adjusted, complete the "basic setting". Switch off the ignition and disconnect the diagnostic connector.
