Parking Aid Overview

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

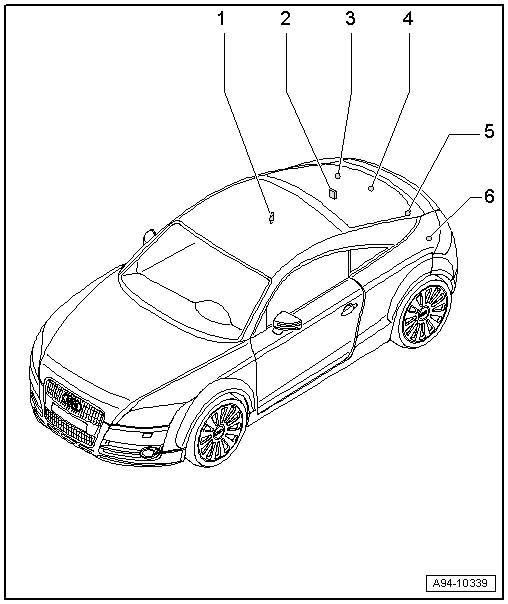

Fig 1: Parking Aid Overview

Courtesy of AUDI OF AMERICA, LLC

1. Rear Parking Aid Warning Buzzer -H15-

   Coupe:

   • Behind right rear speaker trim.
   • Removing and installing, refer to REAR PARKING AID WARNING BUZZER -H15-, COUPE .

     Roadster:

   • Behind left rear bulkhead trim.
   • Removing and installing, refer to REAR PARKING AID WARNING BUZZER -H15-, ROADSTER .
2. Parking Aid Control Module -J446-
   • In luggage compartment at rear, right side, below side trim.
   • Removing and installing, refer to PARKING AID CONTROL MODULE -J446- .
3. Right Rear Parking Aid Sensor -G206-
   • In rear bumper.
   • Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
4. Right Rear Center Parking Aid Sensor -G205-
   • In rear bumper.
   • Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
5. Left Rear Center Parking Aid Sensor -G204-
   • In rear bumper.
   • Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
6. Left Rear Parking Aid Sensor -G203-
   • In rear bumper.
   • Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
