Fog Lamp, Center High-Mounted Brake Light, License Plate Lamps Overview

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

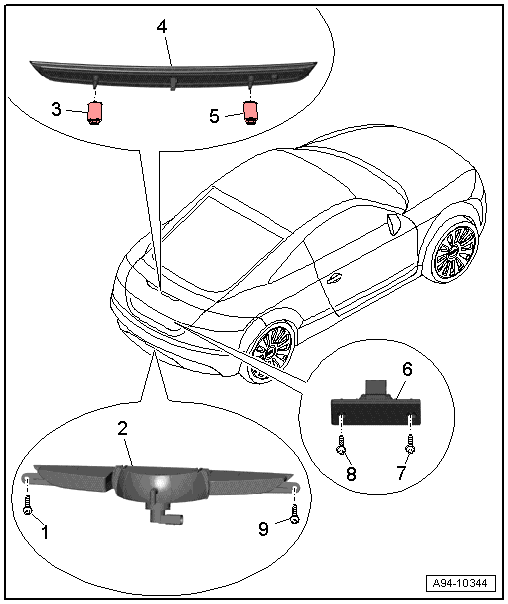

Fig 1: Fog Lamp, Center High-Mounted Brake Light, License Plate Lamps Overview

Courtesy of AUDI OF AMERICA, LLC

1. Screw
   • 1.2 Nm
2. Rear Fog Lamps
   • Left Rear Fog Lamp -L46-
   • Removing and installing, refer to REAR FOG LAMP .
3. Nut
   • 1.2 Nm
4. High Mounted Brake Light
   • High-mount Brake Light -M25-
   • Removing and installing, refer to HIGH-MOUNTED BRAKE LAMP BULB -M25- .
5. Nut
   • 1.2 Nm
6. License Plate Lamp
   • Left license plate light -X4-
   • Right license plate light -X5-
   • Removing and installing: vehicles through 11.06 LICENSE PLATE LIGHTS -X4- / -X5-, THROUGH 11.06 , vehicles from 11.06 LICENSE PLATE LIGHTS -X4- / -X5-, FROM 11.06 .
7. Screw
   • 0.8 Nm
   • Vehicles through 11.06
8. Screw
   • 0.8 Nm
   • Vehicles through 11.06
9. Screw
   • 1.2 Nm
